X9 CCTV TESTER 5 IN 1 TOUCH SCREEN 8 INCH

รายละเอียด

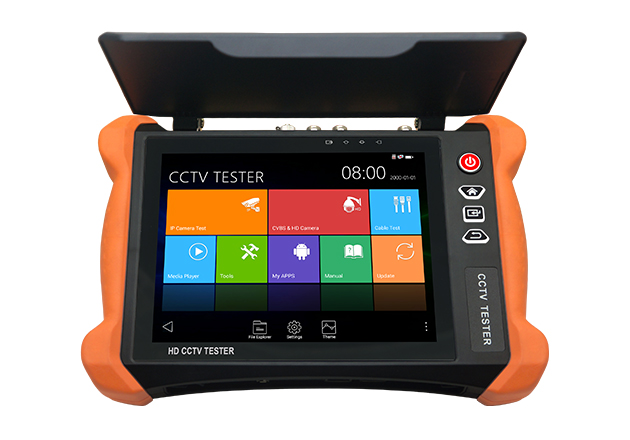

X9 Multifunction 8 Inch CCTV Tester Pro

– 8 inch retina touch screen, 2048*1536 resolutions
– H.265 & H .264 IP, 4K video display via mainstream
– 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
– 5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
– 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

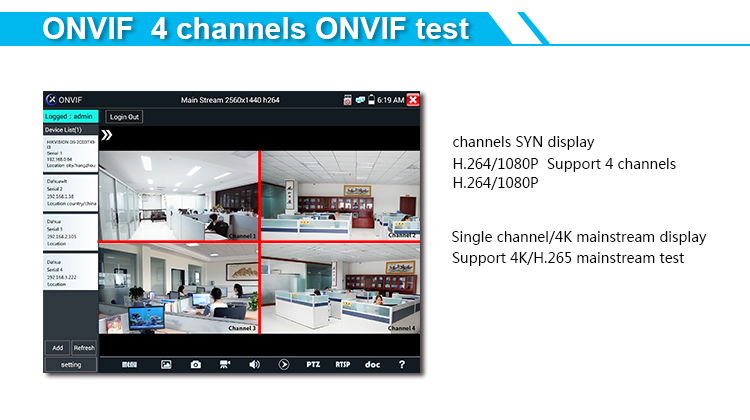

– 4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K
– Rapid ONVIF, Auto log in and display image, create testing report
– Chrome browser, test and set Axis camera
– AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
– CVBS camera test and PTZ control
– IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
– Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
– DC12V/3A power output, camera can be powered from DC 12Votage
– 48V PoE power output power
– Rapid video, just by one key to detect all network cameras and auto display
– Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:
– Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
– RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:
– Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
– POE & power information, DC12V& PoE power and voltage output /input measurement
– Tester Play: Tester, android version mobile phone and PC display at the same time
– Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
– HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot *
– Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
– Self -update software, you can install apps with android version
– Media player, 4K video files and MKV/MP4 media files play
– Quick office, quick office app (support excel, word, ppt format) doc. editable
– 8GB SD card including
– Display its genuine resolution of the IP camera images
– Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
– 7.4 V /7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 16 hours

ตัวเครื่องรับประกัน 1 ปี
แบตเตอรี่และหัวชาร์จ รับประกัน 6 เดือน

สอบถามรายละเอียดเพิ่มเติม
โทร 098-391-5679 ,, 062-349-6995
Line : @RACKBB3 (มี @นำหน้า)
