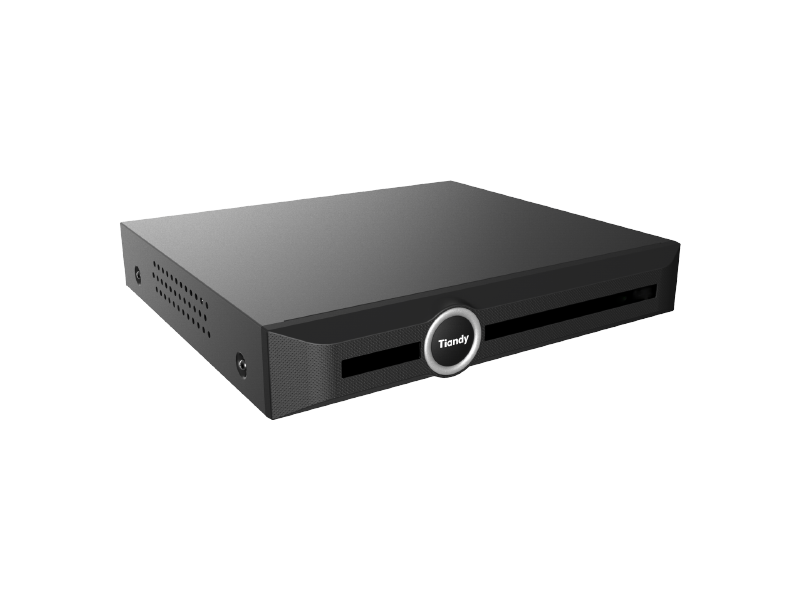

TC-R3220 Spec: I/B/P/H

Feature

HD Input

• S+265/H.265/H.264 video formats
• Connectable to third-party network cameras
• Up to 20 IP cameras can be connected
• 16 PoE ports
• Supports live view, storage and playback of connected camera at up to 12MP resolution

HD Output

• 1×HDMI and 1×VGA independent outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 2 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100/1000 Mbps network interfaces
• PoE port: 16xRJ45 self-adaptive 10/100 Mbps network interfaces

Functions

• Centralized management of IP cameras, including configuration, parameter import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Tiandy, recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to make the playback efficiency
• Web6 supports plug-in free browsing and can preview videos on all browsers
