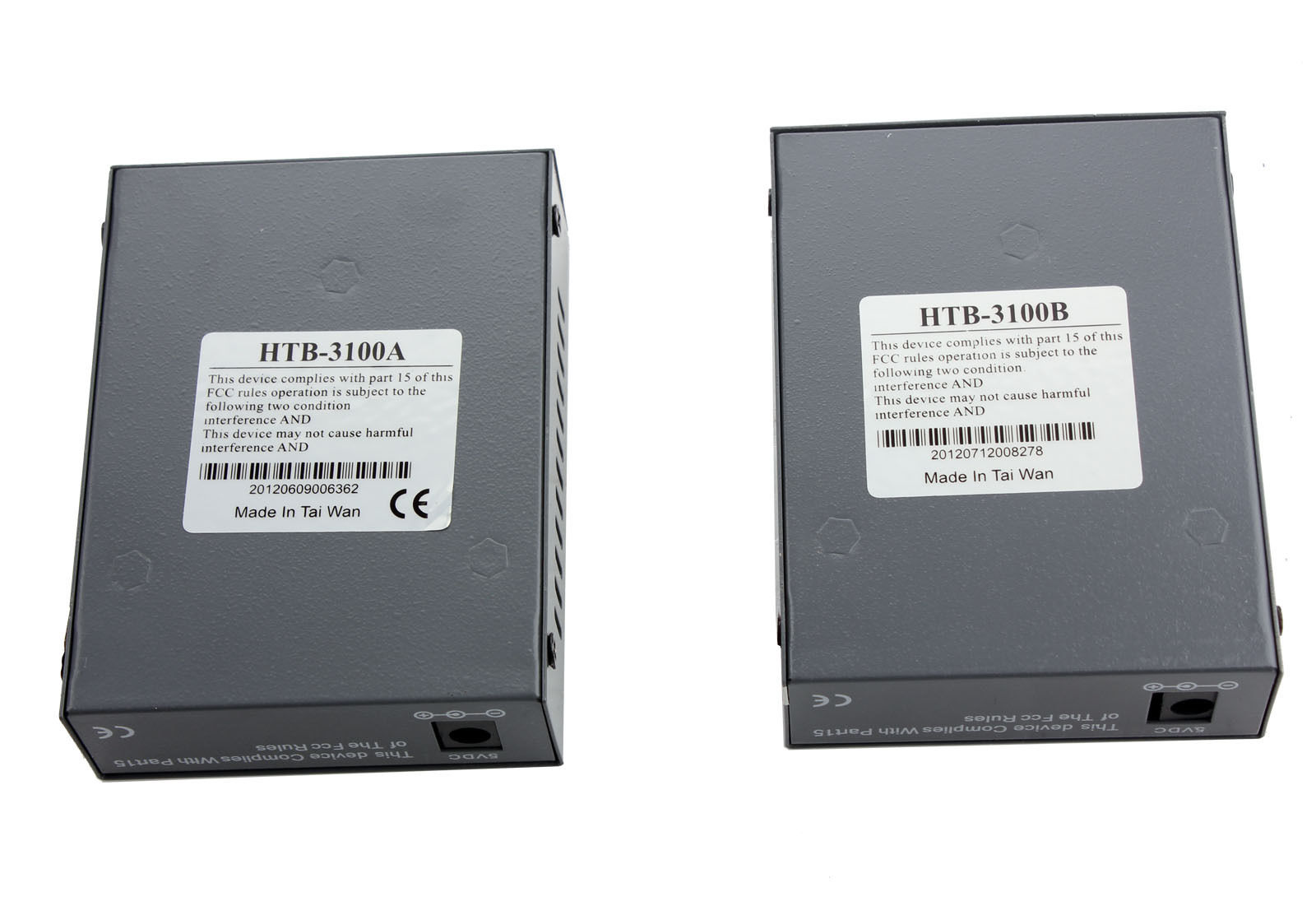

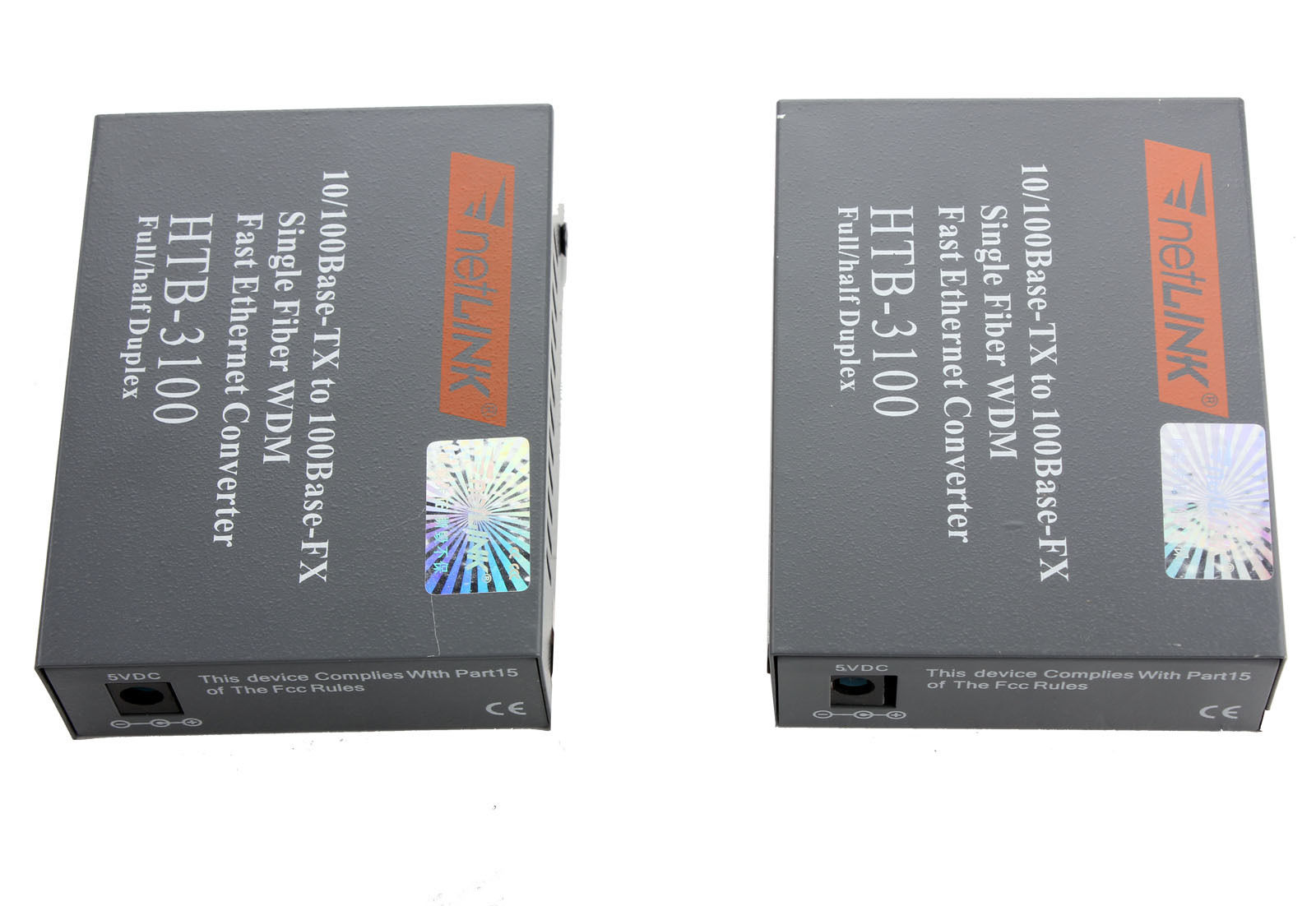

HTB-3100 netLINK 10/100M Single-mode Single-fiber WDM Fiber Media Converter

Feature

• The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
• Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.
• UTP port supports MDI / MDI-X auto crossover
• Supporting flow control
• Supporting 1552 Byte packet
• Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
• Design of internal or external power supply for selection by users

Specification

• Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
• MAC address table: 1K
• Connector:
  • UTP: RJ-45 10/100Mbps;
  • Fiber: SC 100Mbps
• Cable:
  • UTP: Cat. 5 UTP (the max distance up to 100m)
  • Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
• Flow Control
  • Full Duplex: IEEE802.3x
  • Half Duplex: Backpressure

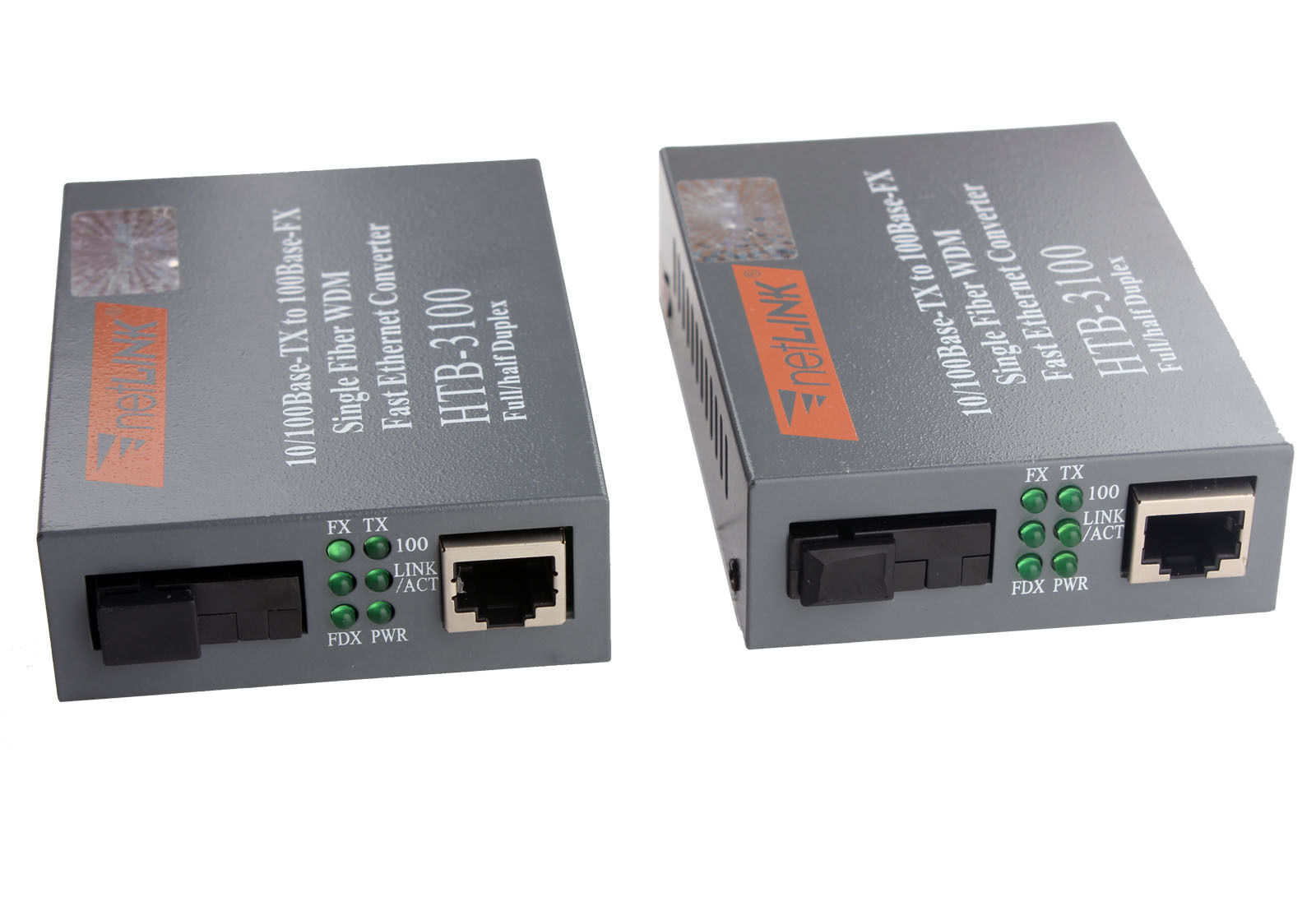

• LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
• Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
• Ambient temperature：0 ～ 50℃
• Storage temperature：-20 ～ +70℃
• Humidity: 5% ～ 90%
• Dimensions:
  • Internal power: 30×110×140mm

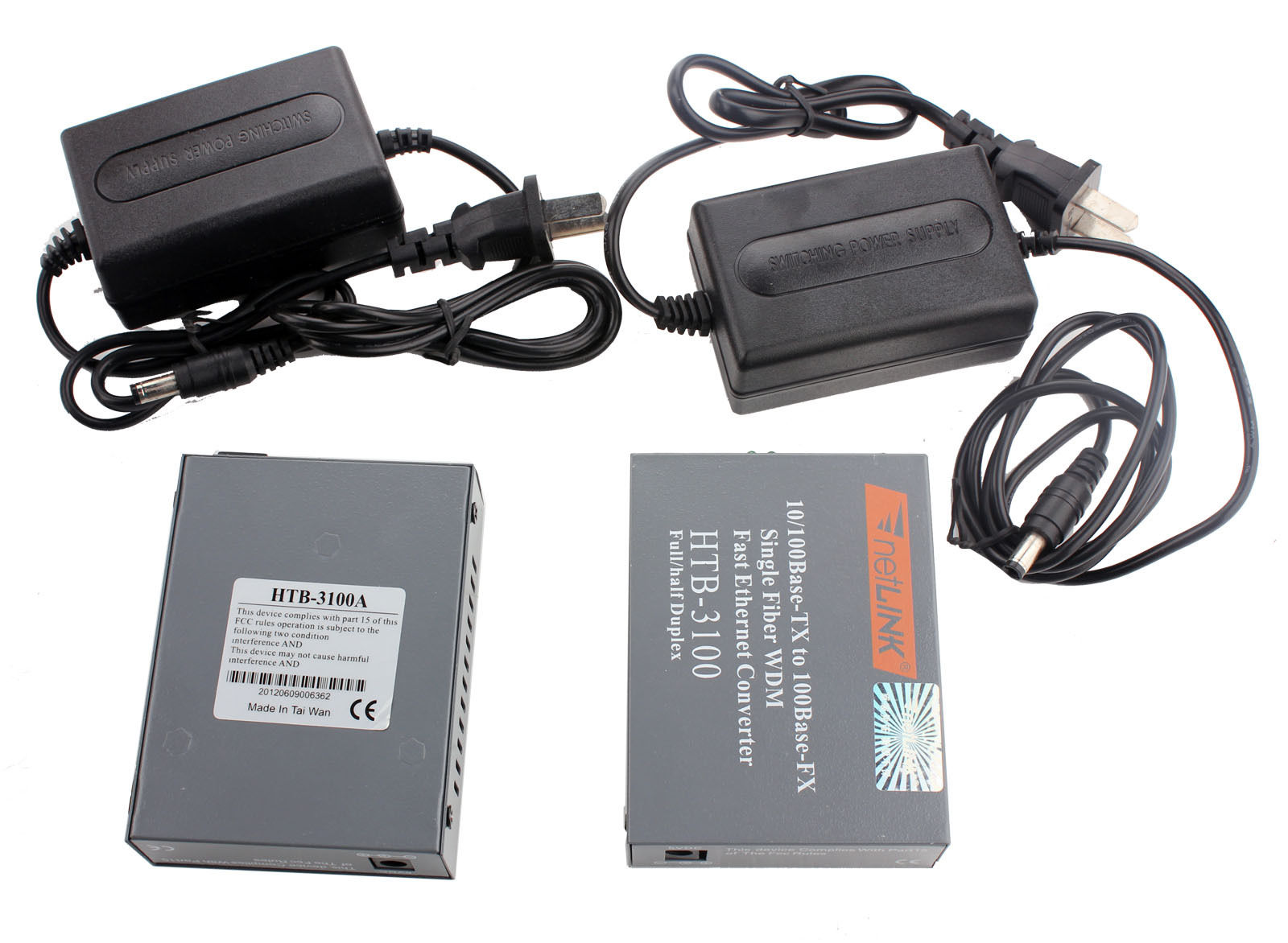

  • External power: 26×70×93mm
