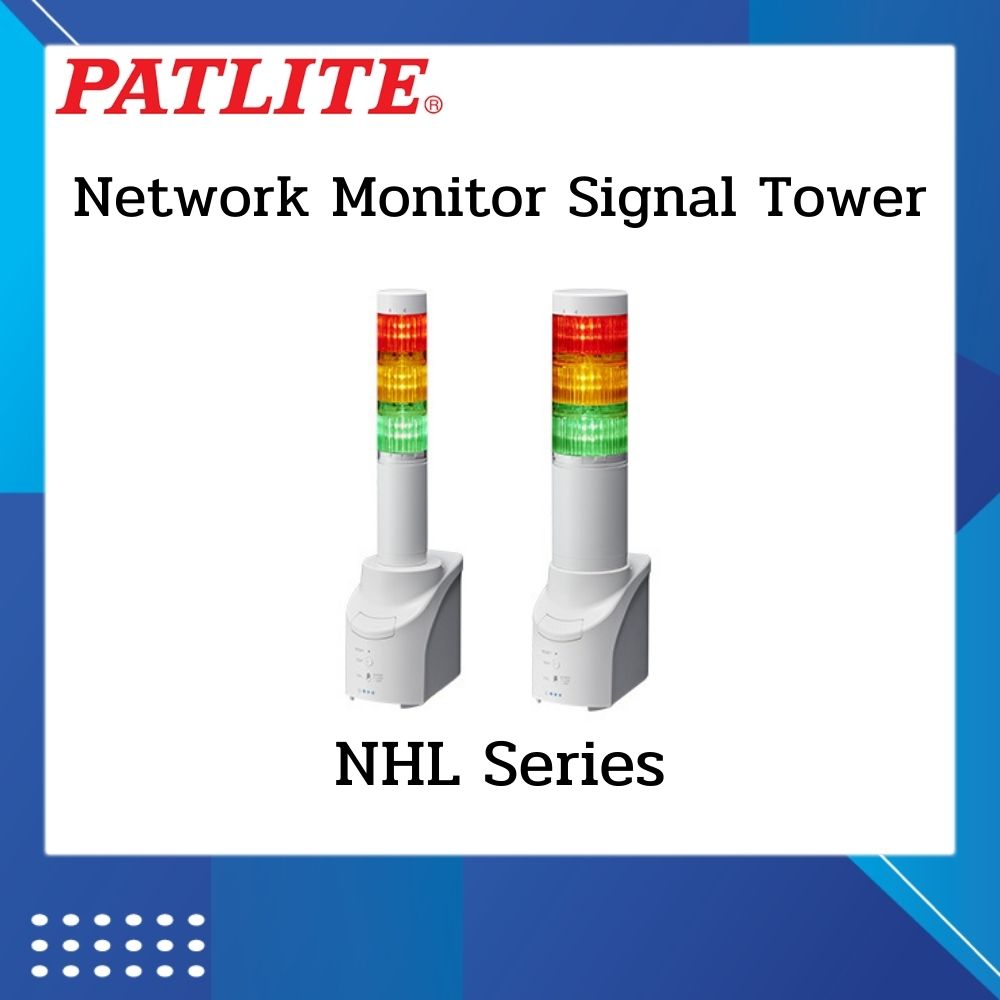

Name: NHL Serie Network Monitor Signal Tower NHL-3FB2W-RYG
SKU: SKU-00874
Price: 24860 THB
Availability: InStock

【Quicker Response】

Ping up to 24 devices and notify operators of ping failures in real-time with unambiguous visual and audible alerts.

【Know You're Connected】

The green LED unit can be configured to indicate the NHL's connection to your network.

【Customizable to Fit Your Application】

Standard configuration consists of a light tower with three LED segments and a programmable audible alarm with volume settings. Add up to 5 LED units for highly effective visual signaling.

【Email Notifications】

Alarms can trigger emails to be sent to up to 8 addresses per event so you will never miss a network signal.

【Protocol Support】

The NHL supports SNMP, HTTP, PNS (Developed by PATLITE), Socket Transmission command protocols. Alarms can send SNMP traps to network management systems.

DIMENSIONS	Tower diameter: 60mm (NHL), 40mm (NHP)
OPERATING VOLTAGES	24V DC (AC Adaptor 100V AC ~ 240V AC)
PROTOCOLS	・Physical Layer: 10 BASE-T/100 BASE-TX ・Data Link Layer: CSMA/CD ・Network Layer: IP/ICMP/ARP ・Transport Layer: TCP/UDP ・Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
FUNCTIONS	・Ping Device Monitor ・RSH Command ・SNMP v1・v2 ・Self-diagnosis ・Application Monitor ・SOCKET ・ E-mail Transmission
BODY STYLE	・Interface Converter Base: Off-white ・Tower: Off White
STACKABLE TIERS	・3 tiers only
MODULE COLORS	・LED source Color: Red / Amber / Green ・Lens Color: clear Lens
AUDIBLE STYLE	・Alarm 1: selectable, Slow Intermittent ・Alarm 2: selectable, Fast Intermittent ・Alarm 3: Fast Burst ・Alarm 4: Continuous
CONFORMITY STANDARDS	・RoHS Directive (EN 50581) ・EMC Directive (EN 55032, EN 55024) ・FCC Part15 Subpart B Class B, ICES-003 Class B ・UL 1638, UL 464 CSA C22.2 No.205 ・KC (KN 61000-6-2, KN 61000-6-4)1 ・PSE Compliant AC Adaptor 1：Only N type and W type CE Marking UL/cUL Listed W type is an international model.

NHL Serie Network Monitor Signal Tower
